Honda 2004-2005 CBR1000RR Gauge Backlighting

2004-2005
Honda CBR1000RR

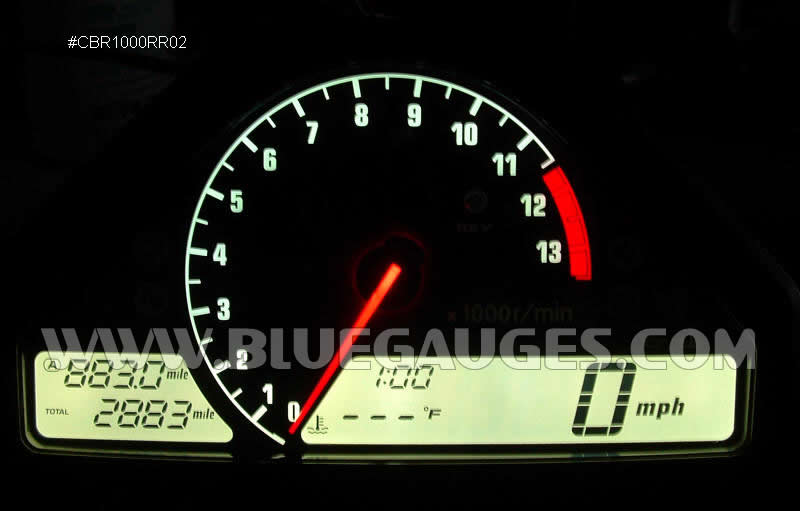

#CBR1000RR02

All White

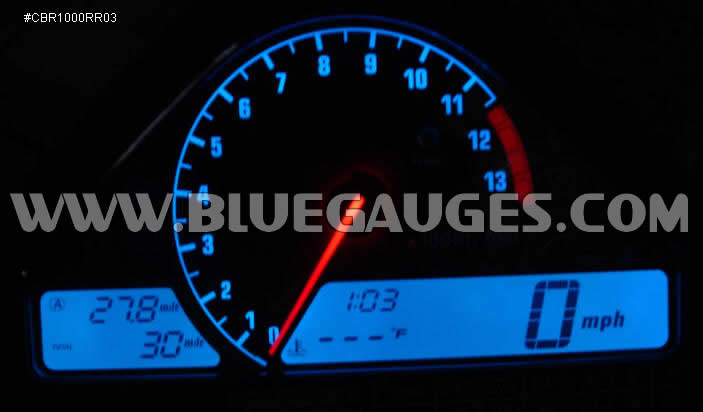

#CBR1000RR03

All Blue

All Blue-Green

All Green

All Orange

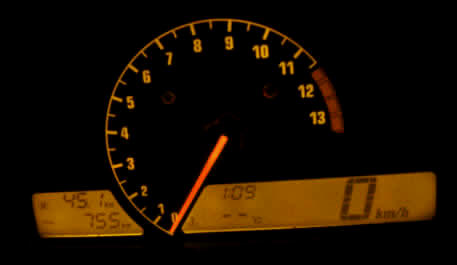

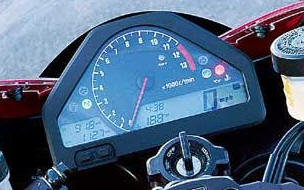

(Factory Original Color)

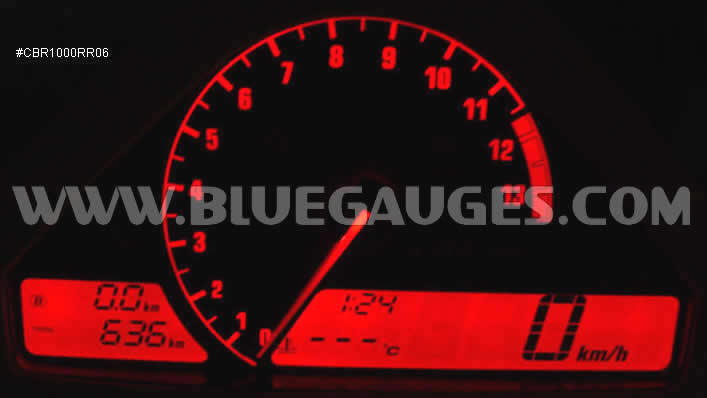

#CBR1000RR06

All Red

All prices include return shipping by priority mail
(express mail is optional) and "Plug & Play" installation of the
faceplate directly onto the circuit board inside the gauge.

White Faceplates:
#CBR1000RR04 The required faceplate no longer available from us. The product has changed quality and is no longer up to our standards.	#CBR1000RR05 The required faceplate no longer available from us. The product has changed quality and is no longer up to our standards.

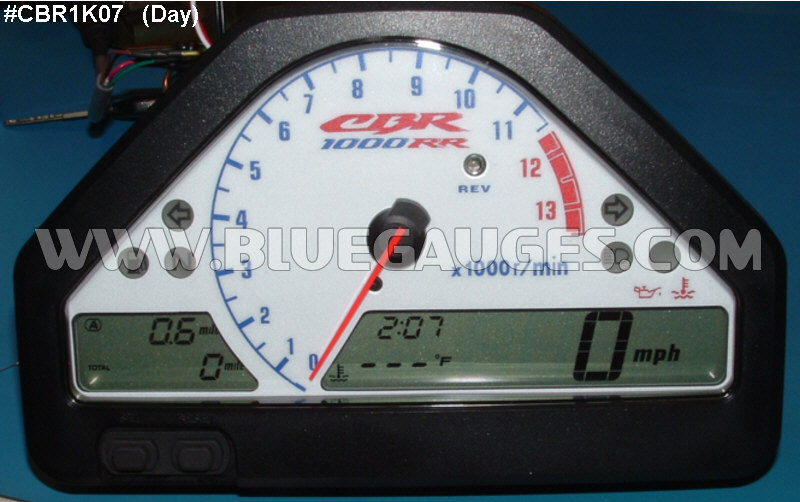

#CBR1K07 (Click for day/night rollover photo) The required faceplate no longer available from us. The product has changed quality and is no longer up to our standards.
Daytime photo of white standard and reverse style illumiglo faceplates. Note: There are some CBR1000RR gauges that have a slightly different design. If your gauge has 2 screws or does not have a needle stop pin as shown in this link, this faceplate will not be a direct replacement. It can still be used though and we can make the holes for the screws if necessary but it will still have a hole where the needle would be if the gauges had one. Also, if your gauges have a HISS indicator we can modify the gauges to allow the indicator to show through but there will be no "H.I.S.S." text.
Colored Faceplates

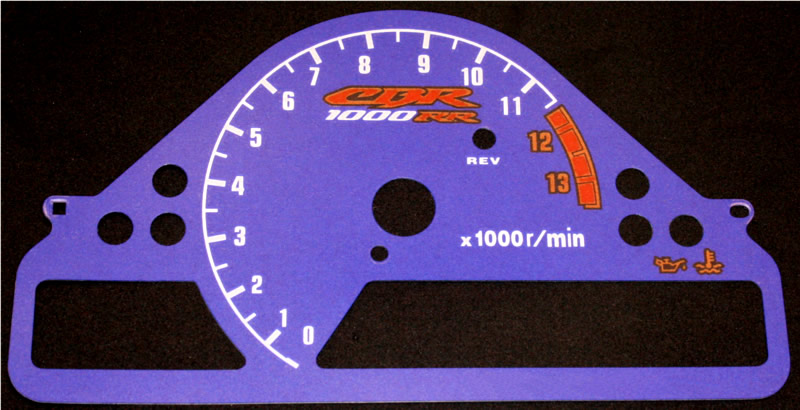

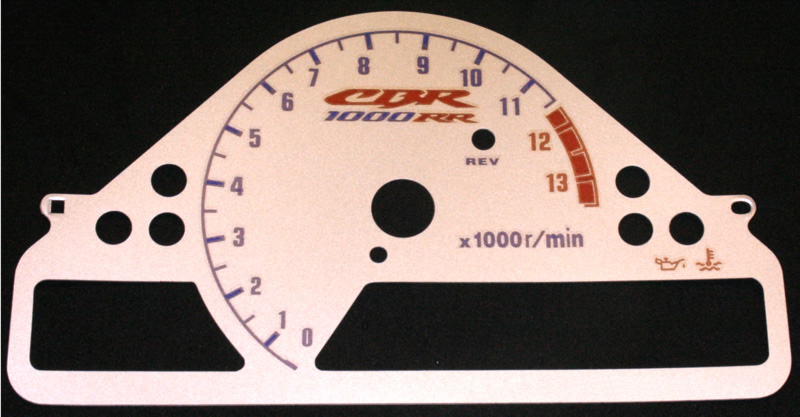

#1065 Silver $79.99	#1067 Blue $79.99

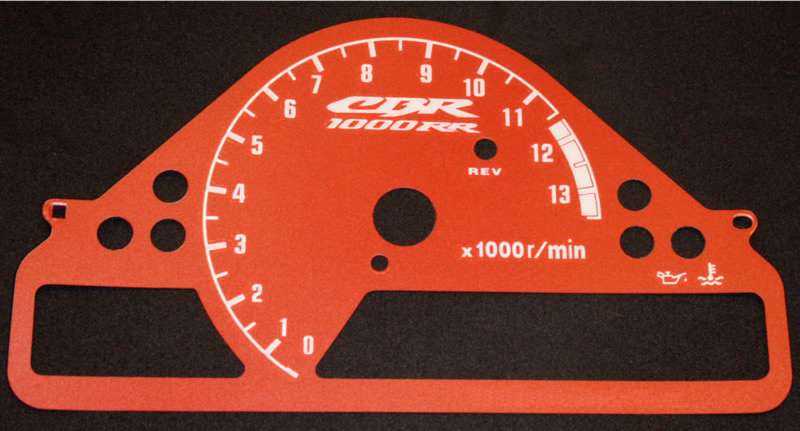

#CBR1K09 (Click for day/night rollover photo) All red backlighting with a red illumiglo faceplate. $130	#1066 Red $79.99

We have tested several LED's for brightness and believe to have found the best available. Send the gauges to us and be sure you have the brightest LED's around. You probably won't find brighter LED's without a huge minimum purchase.
Lifetime warranty on all backlighting for as long as you own the vehicle.
Lifetime warranty on faceplates (If we do the installation only).
No risk of damaging your gauge cluster.
Your choice of colors.
Colors can be combined for different effects.
There is a recall on this gauge by Honda....Click HERE for more info.
Gauge removal instructions.
Other Info:
- 2004-2005 gauges redline at 11.5-13.5K
- To set the "REV" light function press and hold "SEL", then turn the bike on.
  - Release the "SEL" button and press the "RESET" button repeatedly until the needle is at the desired rpm for the shift light to activate. (anywhere from 4k-12k)
  - After desired RPM is chosen, press "SEL" once
  - Repeatedly press "RESET" and choose from the following:
    - Fast flash - high brightness
    - Fast flash - medium brightness
    - Fast flash - low brightness
    - Slow flash - high brightness
    - Slow flash - medium brightness
    - Slow flash - low brightness
    - Solid light - high brightness
    - Solid light - medium brightness
    - Solid light - low brightness
  - After desired REV function is selected, press "SEL" to finish
- To switch KM to MPH or MPH to KM
  - Press and hold "SEL"
  - Then press and hold "RESET" so that you are holding both buttons in. (clock hour will flash)
  - Release both buttons.
  - Press "RESET" repeatedly to adjust hour
  - press "SEL"
  - Press "Reset" repeatedly to adjust minutes
  - press "SEL"
  - Press "RESET" to switch mph / km/h
  - Press "SEL" (If gauges read in KM by default, the process is complete at this point)
  - Press "RESET" to switch temp to read in "F" or "C"
  - Press "SEL" to finish.

Note: This is a service only, you must package and ship the gauge cluster to us
to have this done. A "D-I-Y kit" is not available. (See FAQ Page for more.)

All prices in US$ and include return shipping
to USA via Priority Mail. (Ordering Details)

Custom Combos Available!
If you have a special request, request a quote.
