Solution Graphics




CBR1000RR
Gauge installation / removal instructions

Instructions: Images:

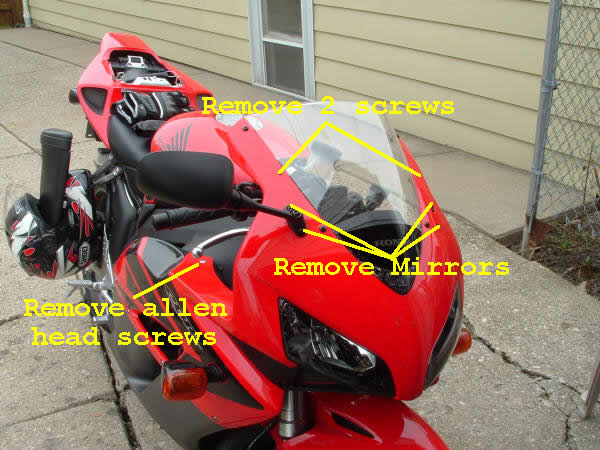

  1. Remove mirrors

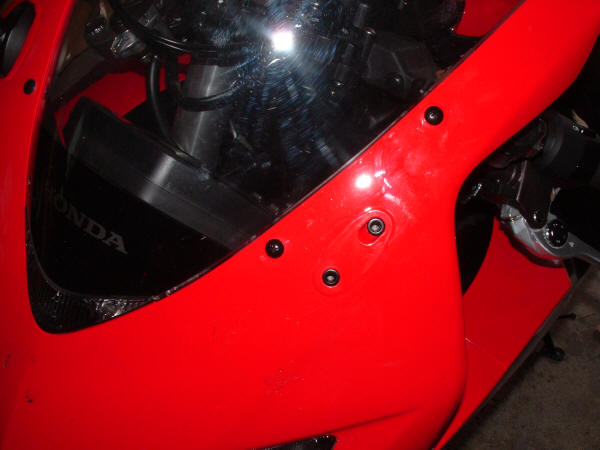

  2. Remove only the (2) windscreen screws that are holding the windscreen and fairing to frame

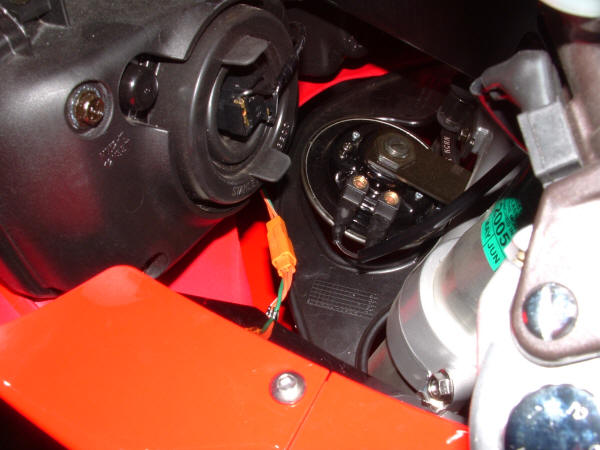

  1. Remove (4) plastic clips on inside near forks
  2. Remove (4?) allen head screws near lower part of nose fairing
  3. Disconnect gauge wiring harness

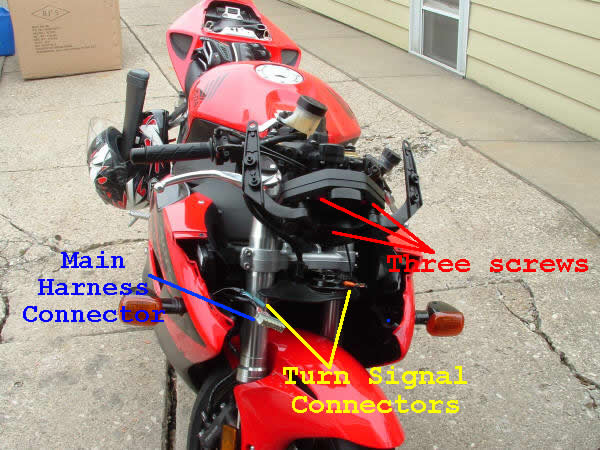

  4. Disconnect main wiring harness

  1. Disconnect (2) turn signal wiring connectors
  2. Set nose fairing aside





  1. Remove (3) screws from rear of gauges.
