Kawasaki ZX-6R/ZX-6RR
Gauge installation / removal instructions

Instructions: Images:
Inner (Upper) Fairing Removal

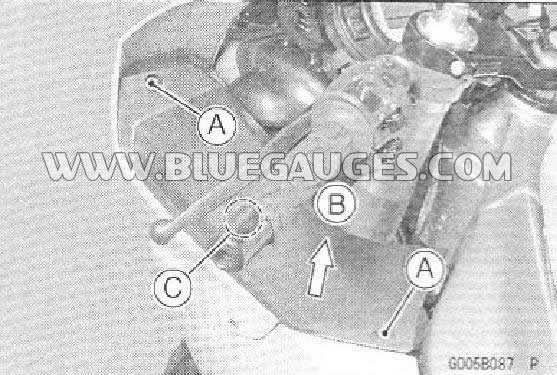

  1. Remove the Allen Bolts [ A ]
  2. Pull the inner (upper) fairing upward
    [ B ] to clear the stoppers [ C ]




Upper Fairing Removal

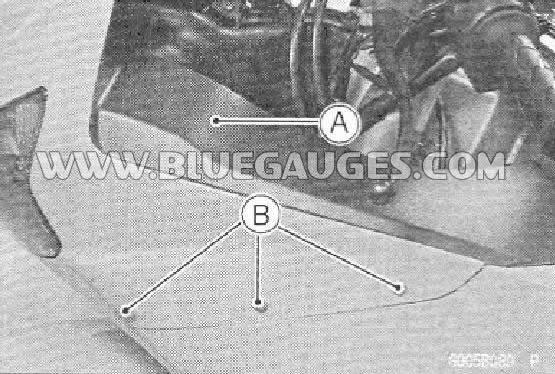

  1. Remove Allen bolts [ B ]
    (Left and Right)

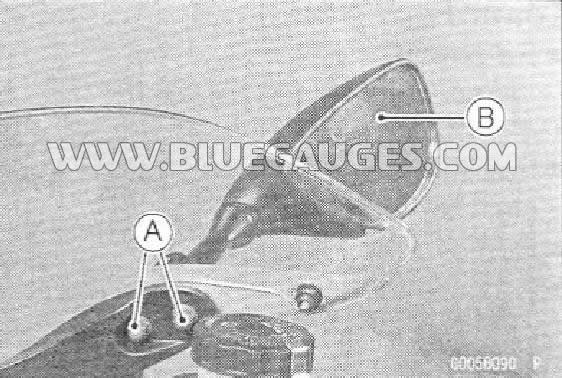

  1. Remove Nuts [ A ]
    (Left and Right)
  2. Remove Rear View Mirrors [ B ]
    (Left and Right)

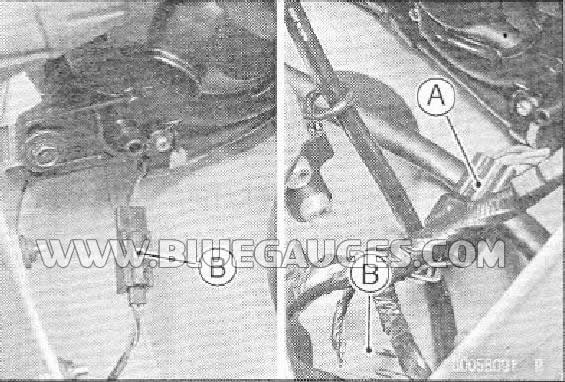

  1. Remove headlight lead connector
    [ A ]
  2. Remove turn signal light lead connector [ B ]
  3. Remove Upper Fairing




Meter Assembly Removal

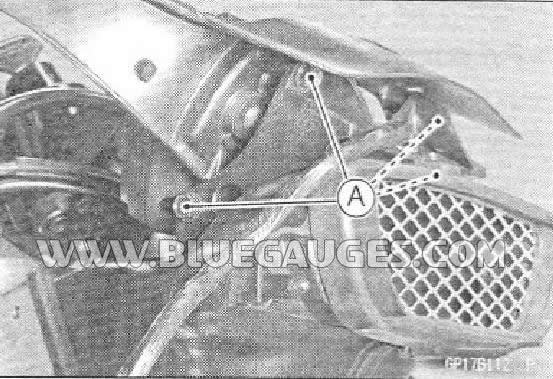

  1. Remove (4) meter bracket bolts
    [ A ]

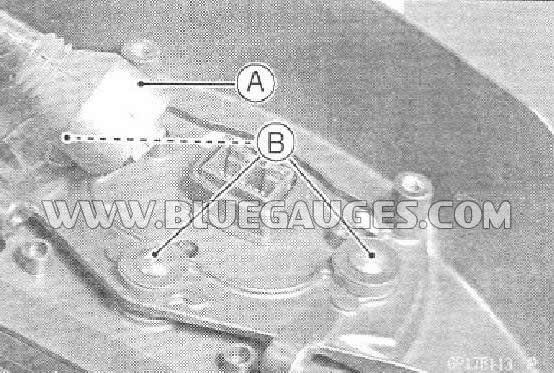

  1. Pull back the dust cover and remove the wiring connector by pressing in the locking tab. [ A ]

  2. Remove (3) mounting screws and washers. [ B ]
