Honda RC51
Gauge installation / removal instructions

Instructions: Images:

Remove upper fairing

  1. Remove the headlight relay from the stay of the upper inner fairing
  2. Disconnect the headlight connectors
  3. Disconnect the front turn signal connectors
  4. Remove the four trim clips attaching the inner fairing
  5. Remove the six lower fairing to upper fairing bolts
  6. Remove the four bolts and rear view mirrors
  7. Remove the setting screw and upper fairing

(Click to enlarge)

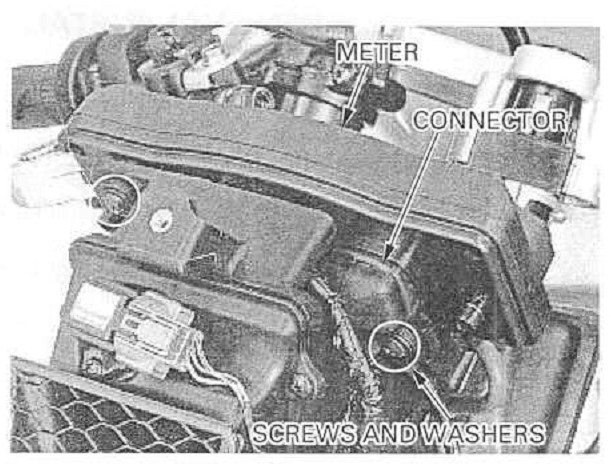

  1. Remove (3) Mounting screws and washers

(Click to enlarge)

  1. Install the upper fairing , aligning the bosses with the grommets on the stay
  2. Install the removed parts in the reverse order of removal
