Gauge installation / removal instructions

Instructions: Images:

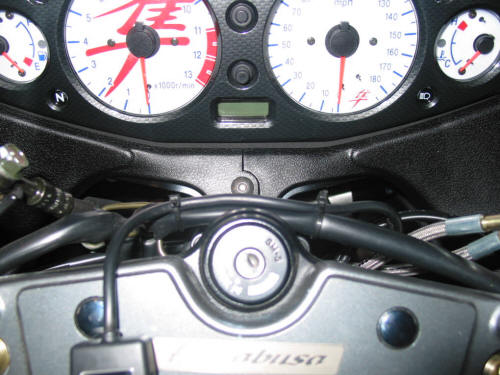

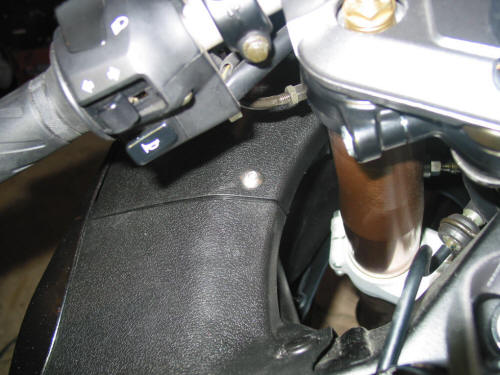

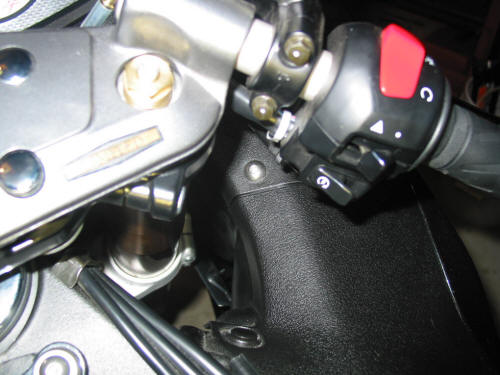

1. Remove the plastic panels below the gauge cluster from the bike.  There are 3 allen head screws. One on the center, lower left, and lower right.

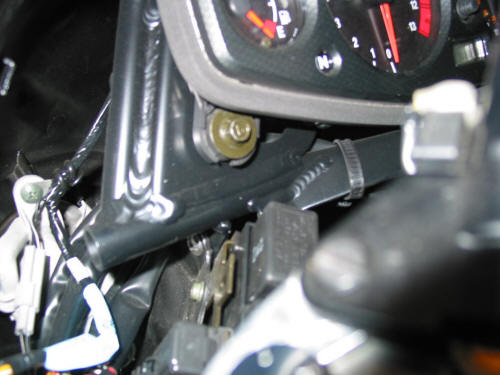

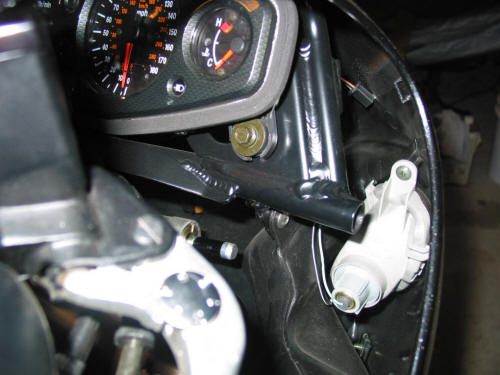

2. Remove two bolts at the bottom of the gauge cluster. One on each end.

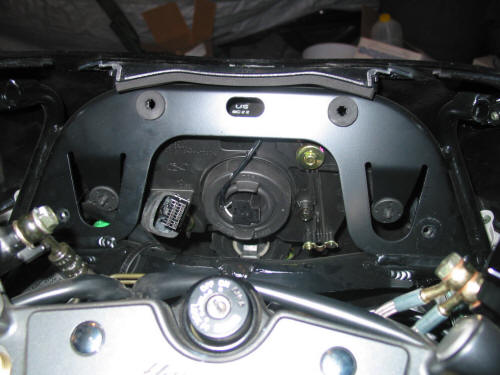

3. Pull the cluster towards you out of the rubber shock mounts.
(as if you were sitting on the bike)

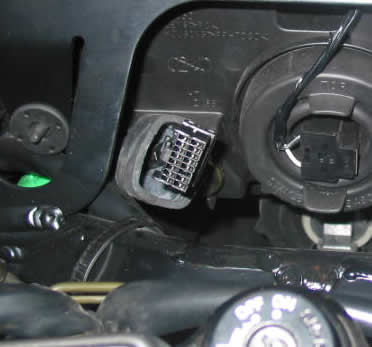

4. Pull back the rubber boot and depress the tab on the wiring connector and disconnect the wiring harness from the back side of the gauges.
