Gauge installation / removal instructions
2006 GSXR 600
2006 GSXR 750
2005-2006 GSXR 1000
Instructions: Images:

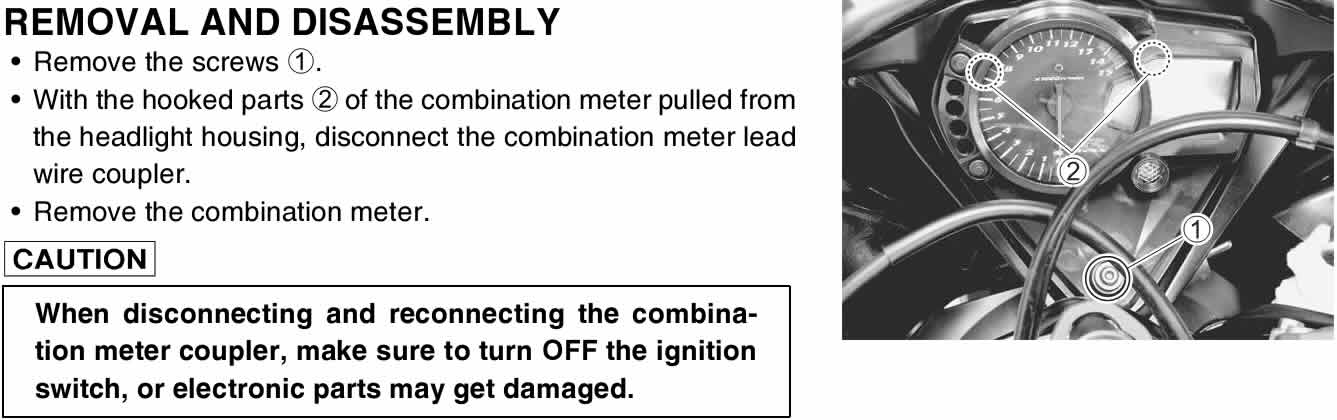

1. Remove screw at bottom center of gauge pod. With the hooked parts of the gauges pulled from the headlight housing, pull back the rubber boot and disconnect the harness connector from the back side of the gauges.

(Click to enlarge)
