Gauge installation / removal instructions
2004-2005 GSXR 600
2004-2005 GSXR 750
2003-2004 GSXR 1000
Instructions: Images:

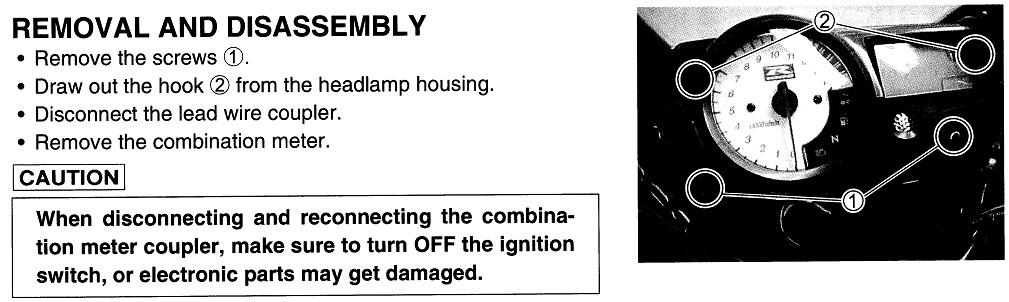

1. Remove 2 screws at bottom left and right of gauge cluster. Then with the hooked parts of the gauges pulled from the headlight housing, pull back the rubber boot and disconnect the harness connector from the back side of the gauges.

(Click to enlarge)
