Gauge installation / removal instructions
2001-2003 GSXR 600
2000-2003 GSXR 750
2001-2002 GSXR 1000

Instructions: Images:

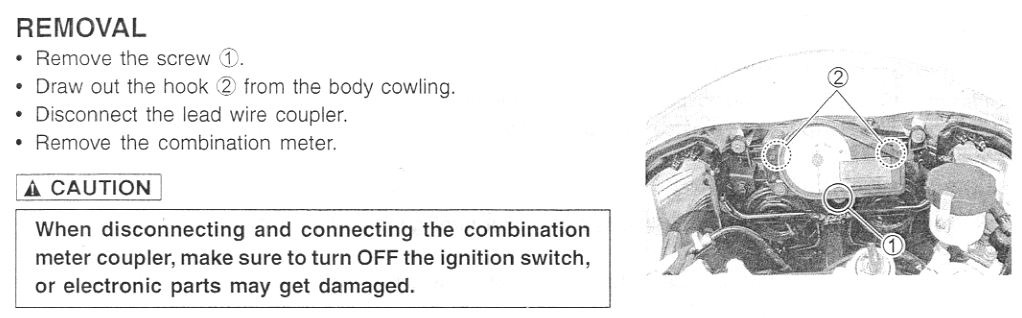

1. Remove screw at bottom center of gauge cluster. Then with the hooked parts of the gauges pulled from the headlight housing, pull back the rubber boot and disconnect the harness connector from the back side of the gauges.


(Click to enlarge)
