Solution Graphics

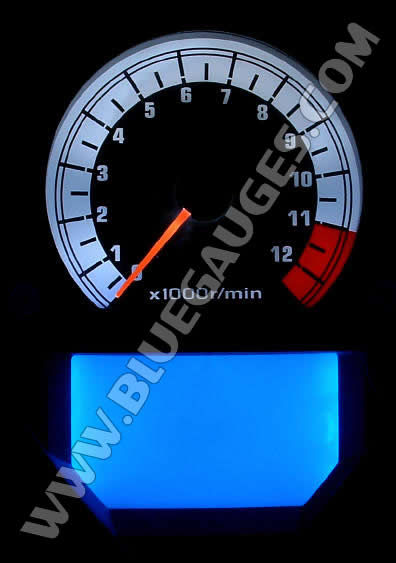

White tach and blue LCD ($70)

All white ($70)

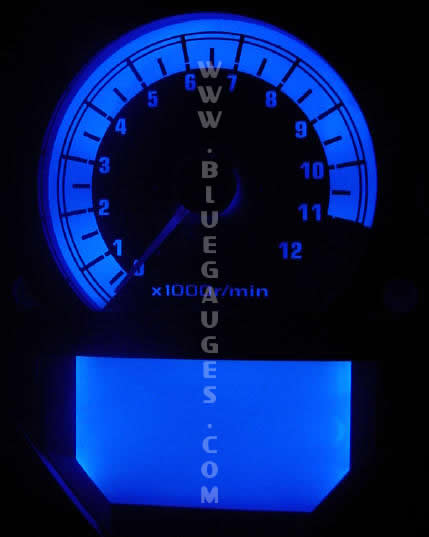

All blue ($70)

All blue-green ($70)

(Stock Color)

All red ($70)

All green ($70)

All orange ($70)
No longer available

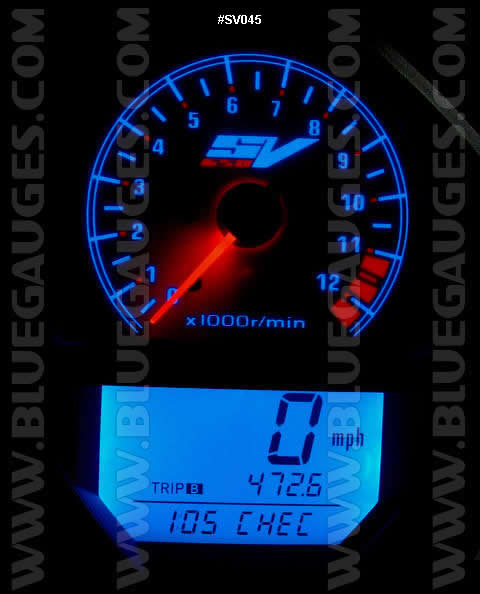

Red under tach (for red needle) and blue LCD with reverse style illumiglo faceplate ($140)
Limited faceplate supplies available.

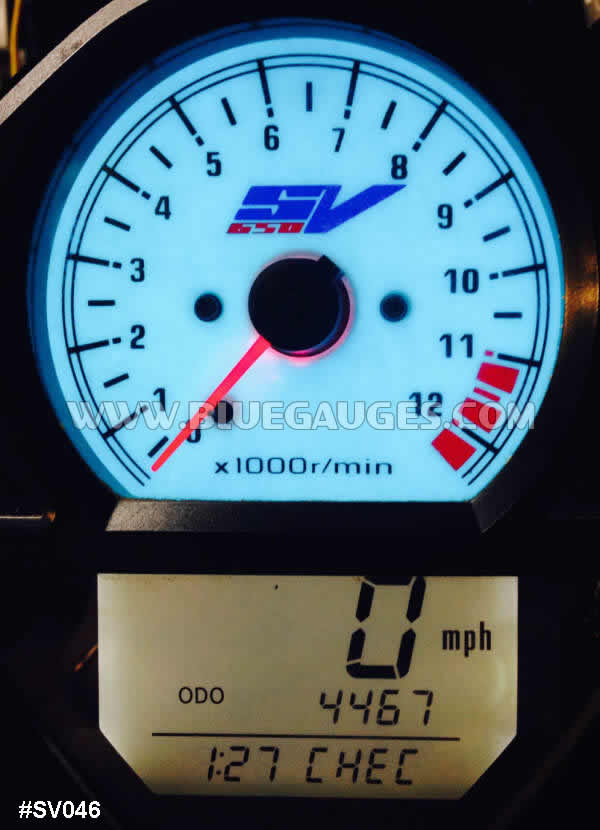

Red under tach (for red needle) and white LCD with standard style illumiglo faceplate($140)

  • We have tested several LED's for brightness and believe to have found the best available. Send your gauges to us and be sure you have the brightest LED's around. You probably won't find brighter LED's without a huge minimum purchase.
  • Military quality soldering.
  • No risk of damaging your gauge cluster.
  • Your choice of colors.
    • Note: These gauges can have one color for the tach and one color for the LCD only. They cannot have a red under the redline since the tach is lit up from the center.
  • Lifetime warranty on all backlighting for as long as you own the vehicle.
  • Lifetime warranty on faceplates (If we do the installation only).
  • Redlines:
    • 2009 SV 650SF ABS = 11-12.5K (White faceplate)
    • 2010 SV 650SA ABS = 10.5-13K (Black faceplate)
  • Typical turnaround times: (approximate)
    • December - March = 2-5 days.
    • April - November = 1-3 days.

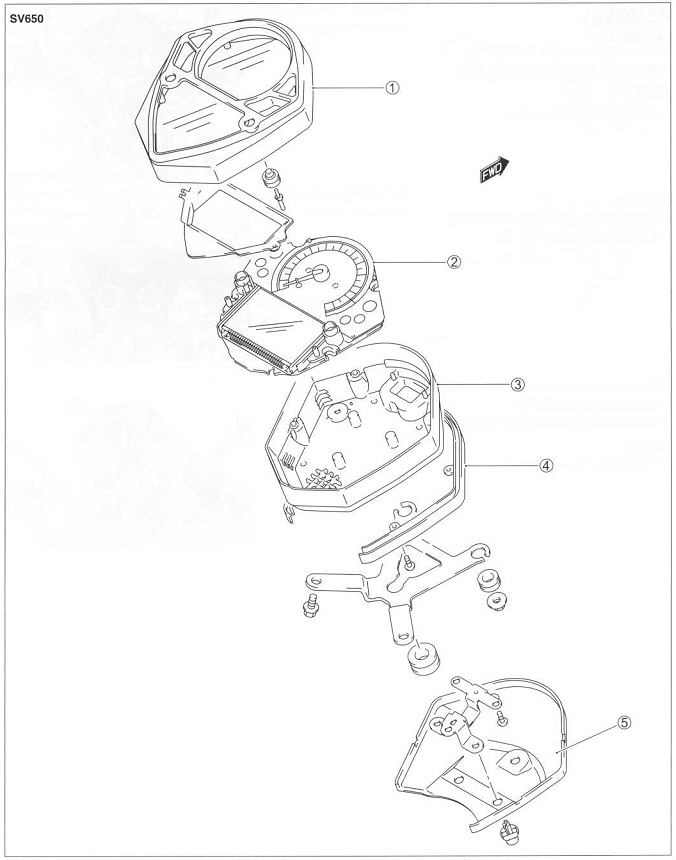

  • SV650 Parts Diagram:

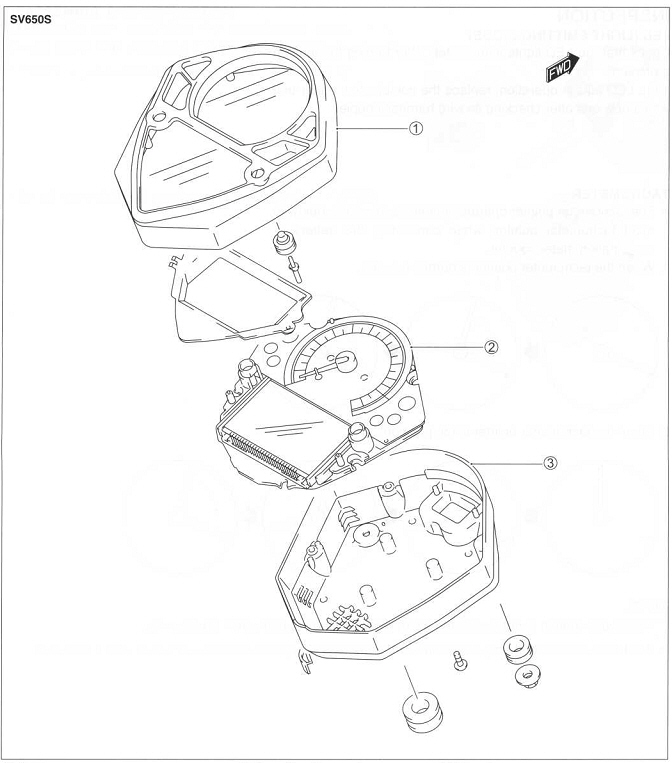

  • SV650S Parts Diagram
  • Wikipedia page
  • Shipping Info

Note: This is a service, you must package and ship the gauge cluster to us to have this done. A "D-I-Y kit" is not available. (See FAQ Page for more.)

All prices in US$ and include return shipping
to USA via Priority Mail. (
Ordering Details)

Custom Combos Available!
If you have a special request, request a quote.

Additional options:

Custom Turn Signal Indicators
$10.00 (Stock=Green)
Select color

Custom Neutral Indicator
$5.00 (Stock=Green)
Select color

Custom Oil/Temp Indicator
$5.00 (Stock=Red)
Select color

Custom High Beam Indicator
$5.00 (Stock=Blue)
Select color

Custom Fuel Indicator
$5.00 (Stock=Yellow)
Select color
Mileage Correction
(More Information)

Express Mail Shipping Upgrade (SV gauges only)

(Priority mail return shipping is included in the price.
This option is only if you want it shipped faster.)

$25.00 (Usually overnight)
