Solution Graphics





2003-2005 Yamaha R6
2008-2009 Yamaha R6S

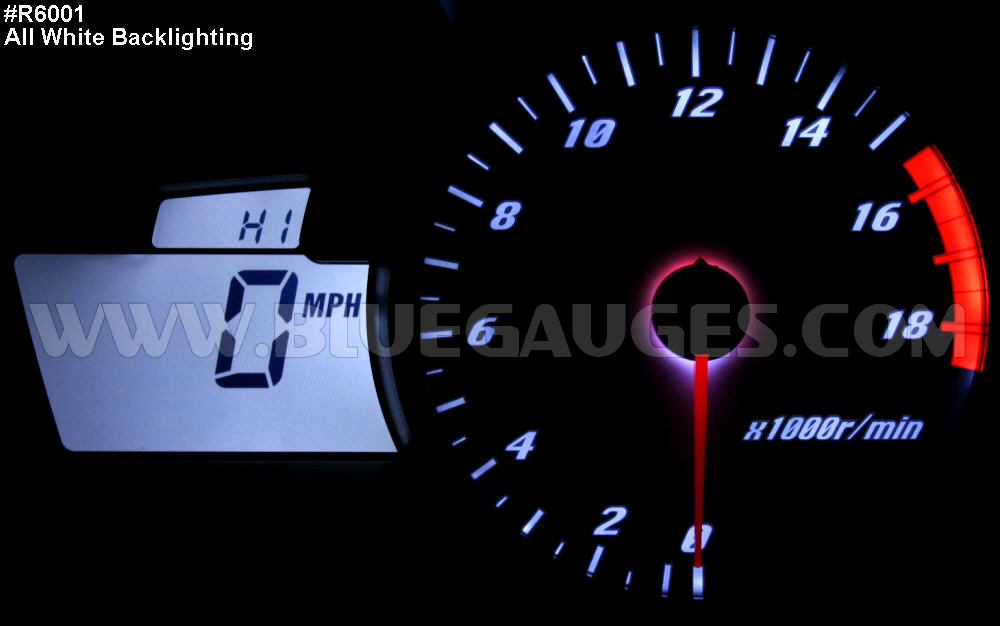

#R6001

All White ($70)

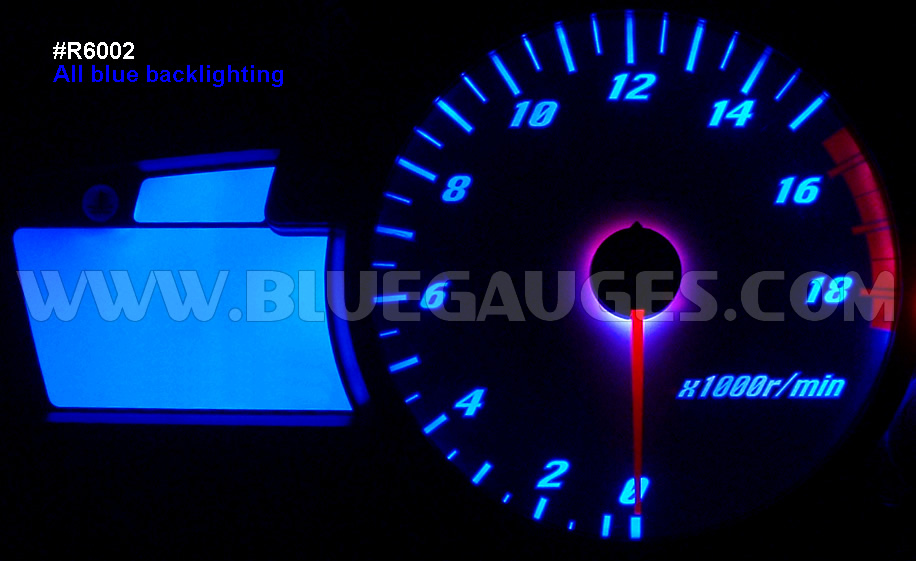

#R6002
 R6002
All Blue ($70)
bluegreenheader

All Blue-Green ($70)


All Yellow ($50)


All Orange ($50)

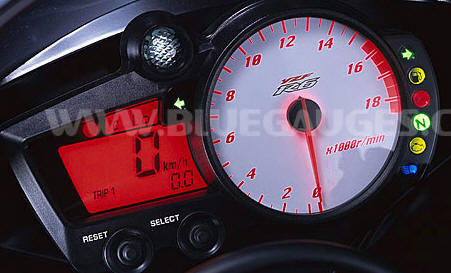

All Green ($70)


(Factory original color.)


All prices include return shipping by priority mail
(express mail is optional) and "Plug & Play" installation of the
faceplate directly onto the circuit board inside the gauge.

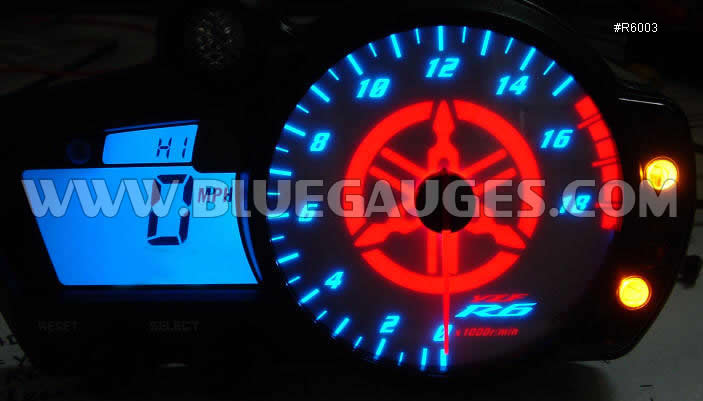

#R6003

Blue LCD and red tach (for a red needle) with a "reverse"
style illumiglo faceplate ($130)

  • We have tested several LED's for brightness and believe to have found the best available. Send the gauges to us and be sure you have the brightest LED's around. You probably won't find equal LED's without a huge minimum purchase.
  • Military quality soldering.
  • No risk of damaging your gauge cluster.
  • Your choice of colors.
  • Colors can be combined for different effects.
  • Can be changed and returned to you in 2-4 days.
  • Additional Info:
    • 2003 gauges will have "YZF-R6" on tach above needle
    • 2004 / 2005 R6   gauges will have only "R6" on tach above needle
    • 2008 / 2009 R6s gauges will have only "R6" on tach above needle

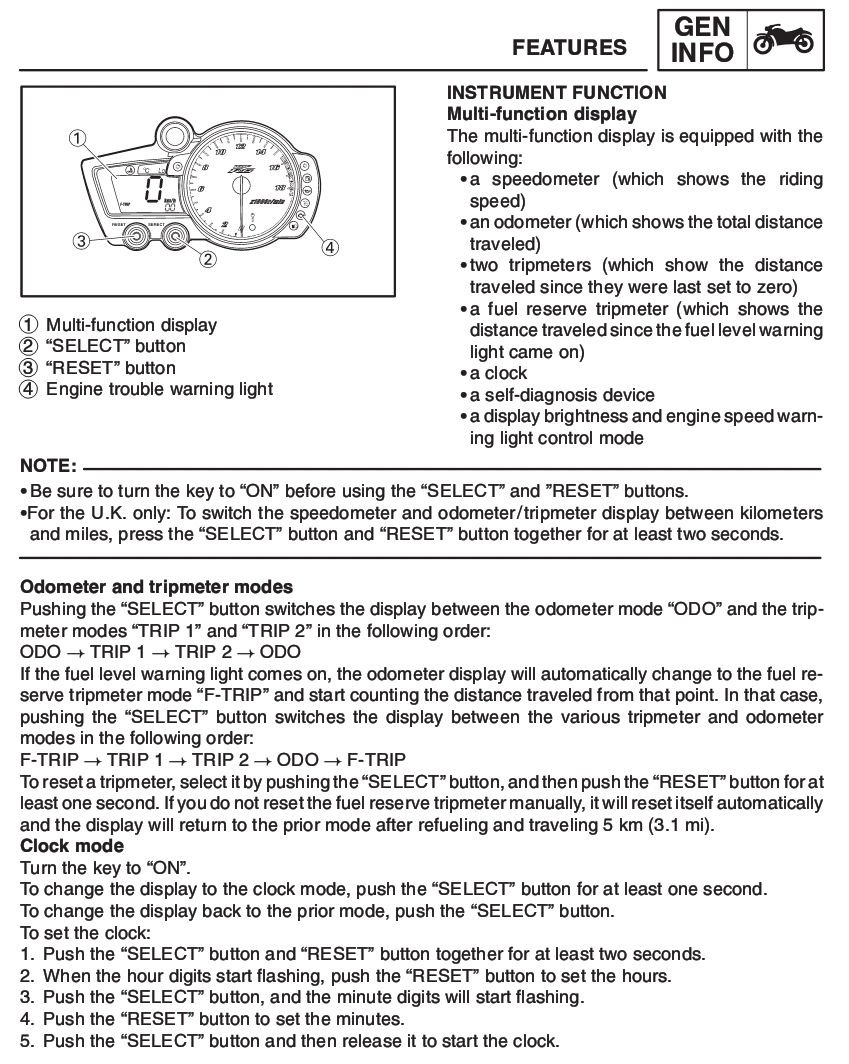

    • Service Manual

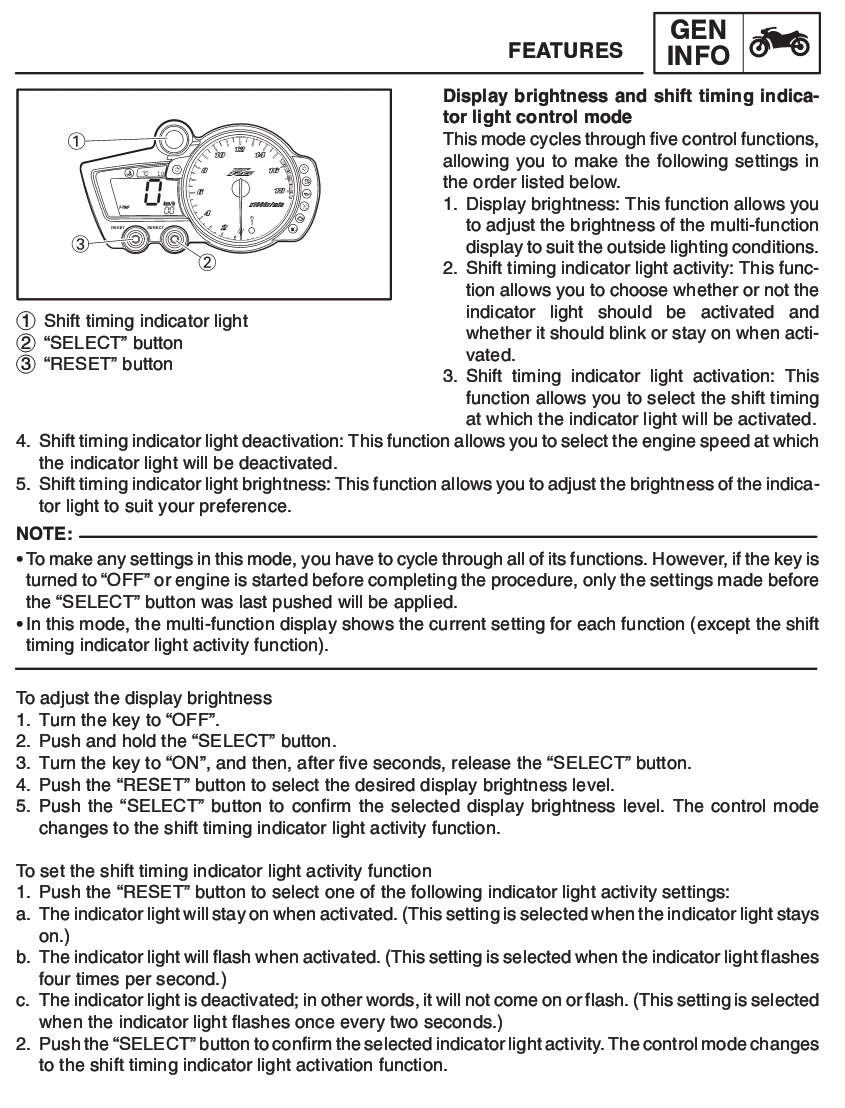

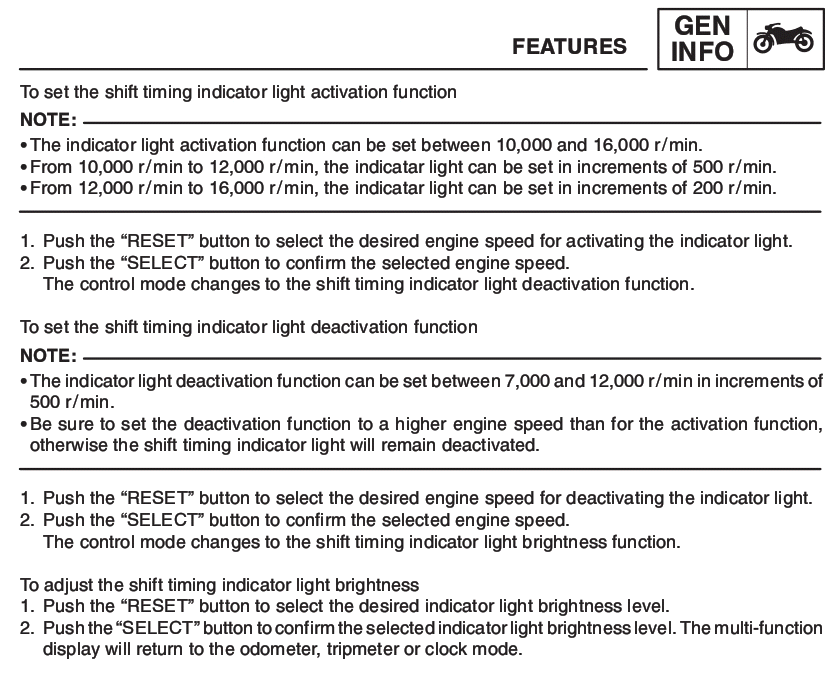

      • Instructions for gauge cluster:

      • Get the full manual in the forums

Note: This is a service, you must package and ship the gauge cluster to us
to have this done. A "D-I-Y kit" is not available. (See FAQ Page for more.)

All prices in US$ and include return shipping
to USA via Priority Mail. (Ordering Details)

Custom Combos Available!
If you have a special request, request a quote.


Additional options:

Custom High Beam Indicator
$5.00 (Stock=Blue)
Select color

Custom Low Fuel Indicator
$5.00 (Stock=Yellow)
Select color

Custom Turn Signal Indicators
$10.00 (Stock=Green)
Select color

Custom Neutral Indicator
$5.00 (Stock=Green)
Select color

Custom Engine Indicator
$5.00 (Stock=Yellow)
Select color

Custom Oil Indicator
$5.00 (Stock=Red)
Select color

Custom Shift Light Indicator
$5.00 (Stock=White)
Select color

Custom Water Temp Indicator (In LCD)
$5.00 (Stock=Red)
Select color
Mileage Correction Available!

(More information)
Illumiglo Faceplates Available!

(More Information)


Express Mail Shipping Upgrade

(Priority mail return shipping is included in the price.
This option is only if you want it shipped faster.)

$25.00 (Usually overnight)
