Solution Graphics


2002-2003
Yamaha R1

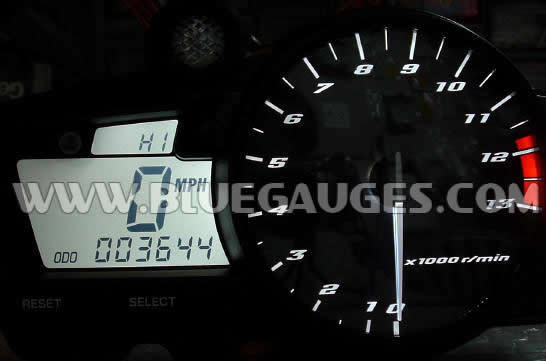

(Factory original color)

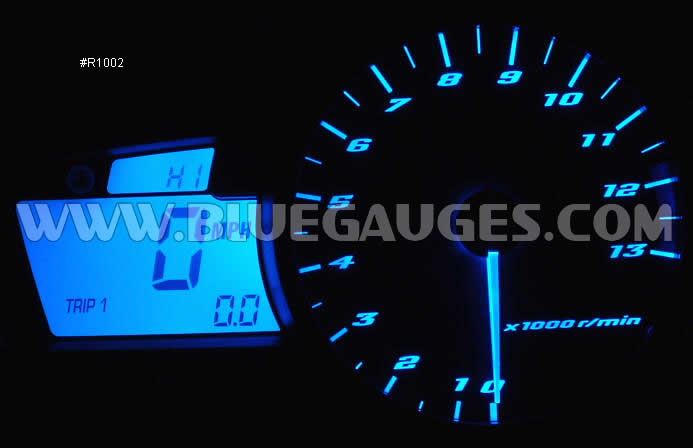

#R1002
All Blue ($70)



All Yellow Lighting ($50)

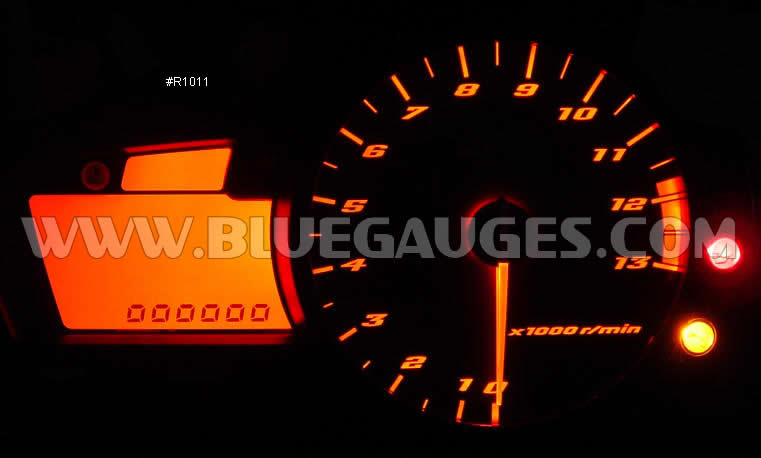

#R1011

All Orange ($50)



All Green Lighting ($70)



All Red Lighting ($50)

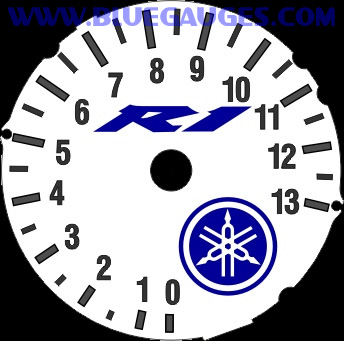

Custom Faceplate Designs:
We can design a faceplate for the 02-03 R1 to your specifications.
(Photographic designs not available.)
Contact us with your design and we will send you a prototype image for your approval.
Once approved we will make the faceplate for you from scratch. Get your buddies together
and design a faceplate for your club or group and save big!

1 = $110.00 ea.
3+ =$70.00 ea.

Standard Faceplate Designs:
We have the following custom designs in stock and available now:

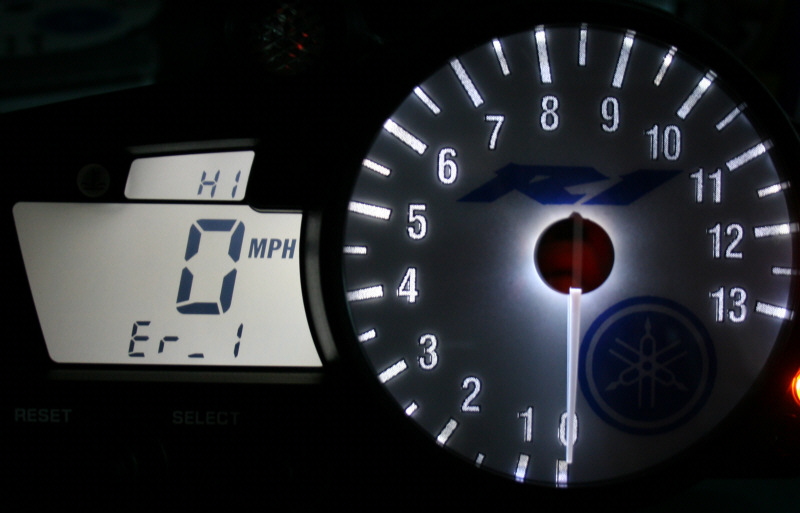

 #R1012

(Faceplate only)
1 = $80.00 ea.
3+ = $55.00 ea.

All prices below include return shipping by priority mail
(express mail is optional) and "Plug & Play" installation of the
faceplate directly onto the circuit board inside the gauges.

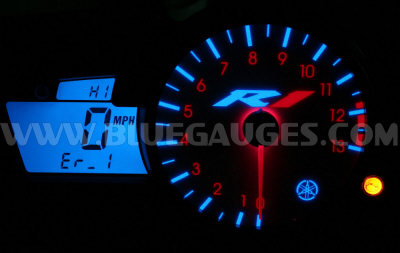

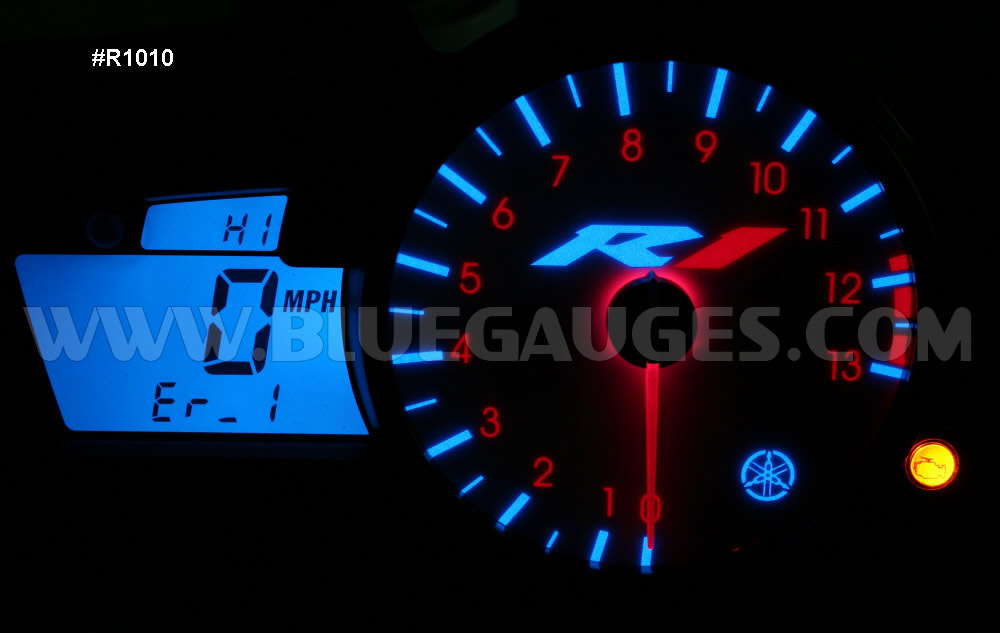

#R1010

Blue LCD and red under the tach for a red needle
with a reverse style illumiglo faceplate ($135)

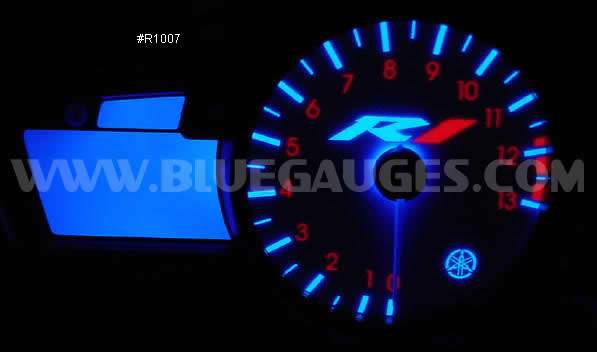

#R1007
All blue lighting with a reverse
style illumiglo faceplate ($145)

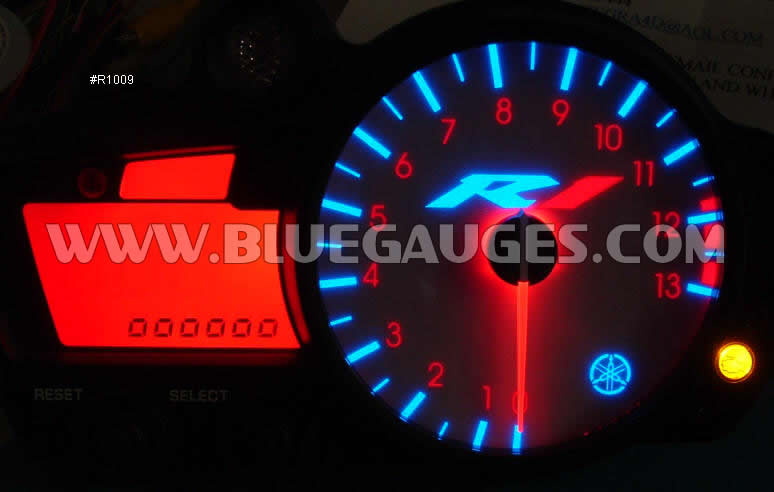

#R1009

All red lighting with a reverse
 style illumiglo faceplate ($135)

  • We have tested several LED's for brightness and believe to have found the best available. Send the gauges to us and be sure you have the brightest LED's around. You probably won't find equal LED's without a huge minimum purchase.
  • Make your gauges easily identifiable if ever stolen.
  • Military quality soldering.
  • No risk of damaging your gauge cluster.
  • Your choice of colors.
  • Colors can be combined for different effects.
  • Can be changed and returned to you in 2-4 days.
  • Additional Info:
    • To adjust programmable settings of gauge:
      • With power off, press and hold "select"
      • Turn power on (continue to hold button for 5 extra seconds)
      • When 3 little circles show up, release "select" and press "reset" repeatedly until desired brightness. (6 is max)
      • Press select again to adjust shift light
        • press "reset" repeatedly for solid, slow flash, or fast flash.
      • Press select again to adjust shift light limits
        • press "reset" repeatedly until desired shift points are indicated.
      • Press Select again to start from the beginning.
      • Press Select again to exit programming mode.
    • Wikipedia Info
  • How to order

Note: This is a service, you must package and ship the gauge cluster to us to have this done. A "D-I-Y kit" is not available. (See FAQ Page for more.)

All prices in US$ and include return shipping
to USA via Priority Mail. (Ordering Details)

Custom Combos Available!
If you have a special request, request a quote.



Additional options:

Shift Indicator
$5.00 (Stock=White)
Select color

Engine Indicator
$5.00 (Stock=Yellow)
Select color

Fuel Indicator
$5.00 (Stock=Yellow)
Select color

Oil Indicator
$5.00 (Stock=Red)
Select color

High Beam Indicator
$5.00 (Stock=Blue)
Select color

Turn Signal Indicators
$10.00 (Stock=Green)
Select color

Neutral Indicator
$5.00 (Stock=Green)
Select color

Temp Indicator
$5.00 (Stock=Red)
Select color

Illumiglo Faceplates Available!

(More Information)


Mileage Correction Available!

(More Information)


Custom Faceplate Designs Available!

(More Information)
LCD Reversal
$40.00
(Sample Image)

Express Mail Shipping Upgrade

(Priority mail return shipping is included in the price. This option is only if you want it shipped faster.)

$25.00 (Usually overnight)
